USD 18.00

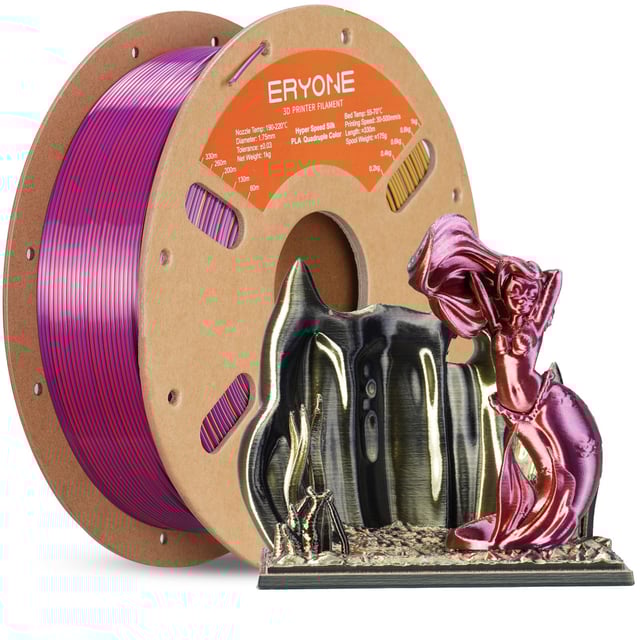

Hyper Speed Quadruple Silk PLA The Eryone High-Speed Silk PLA is a material with a thoroughly improvedformulation, offering significantly enhanced printing speeds compared to standard silkPLA, reaching up to 500 mm/s. Additionally, its tensile strength has been notablyincreased, with the Z-axis tensile strength reaching 20 MPa. This high-speed silk PLAmaterial delivers a more lustrous finish, presenting a silk-like appearance. Thebrightness can be controlled by adjusting the temperature and speed: highertemperatures and slower printing speeds result in increased brightness. Part I: Suggests Printing Parameters Parameter Set up Nozzle temperature 190℃-220℃ Bed temperature 55-70℃ Bed material glass, PEI, spring steel plate Bottom printing temperature 190℃-220℃ Sealed printing Open Printing/closed printing Printing speed 30-500mm/s Drying conditions 65℃-75℃,12H Part II: Physical Properties of Materials Property Testing Method Unit Typical Value Density(g/cm³ at 21.5 ° C) ASTM D792 (ISO 1183, GB/T 1033) g/cm³ 1.32 Vicat Softening Temperature(° C) ASTM D1525 (ISO 306 GB/T 1633) ℃ 56 Heat distortion temperature(° C ASTM D648 1.8MPa 0.45MPa ℃ 50 Glass transition temperature (° C) DSC, 10 ° C/min ℃ 57 Melt Index(g/10 min) 220 ° C, 10kg 240 ° C, 2.16 kg g/10min 20±1.5 Part III: Mechanical Properties of Printed Samples Property Test conditions Test standards unit Typical Value Tensile strength X-Y 50mm/min GB/T 1040.4 MPa 62.7 Elastic modulus X-Y 50mm/min GB/T 1040.1-2006 MPa 1932.1 Elongation at break X-Y 50mm/min GB/T 1040.4 % 2.3 Tensile strength X-Z 50mm/min GB/T 1843 MPa 19.1 Elastic modulus X-Z 50mm/min GB/T 1040.1-2006 MPa 1873.5 Elongation at break X-Z 50mm/min GB/T 1040.4 % 1.9 Bending strength 2mm/min GB/T 9341 MPa 86.7 Bending modulus 2mm/min GB/T 9341 MPa 2917.3 Charpy Impact strenght 2.75J GB/T 1843 kJ/m2 3.8 Note: All splines are printed under the following conditions: printing temperature=215 ° C, printing speed=80mm/s, base plate 60 ° C, filling=100%, nozzle diameter=0.4mm DisclaimersThe values given in this data table are for reference and comparison only. Theyshould not be used for design specifications or quality control. The actual value mayvary depending on the printing conditions. The final performance of printedcomponents depends not only on the material, but also on the component design, environmental conditions, printing conditions, and so on. Product specifications aresubject to change without prior notice.
